Max. sewing speed:2000R.P.M
Compound feed,split needle bar,automatic lubrication
Suitable for car seat,sofa,suitcase,bags heavy duty leather material
This machine is a new product specially developed for car seat industry which is designed with split needle bar to be engaged or disengaged convenient corner stitching ball bearing for arm shaft and lower shaft, cog belt driving, plunger oil pump for automatic lubrication. With compound feeding mechanism, it is available for stitching multi-layer material of heavy weight, such as leather, foam plastics, synthetic fabric, etc and can avoid any displacement. It is a high class equipment for stitching car seals, fabric
decorations in cars, shoe uppers of leather or synthetic leather, sports apparatus, office furniture, soft cushion, trunk, bag, etc
GC20638-251-25D Long arm compound feed split needle bar lockstitch sewing machine is available for stitching car covers, car seats, safety belts. tents, parachutes, gliding parachutes, sofa sails and other large workpiece

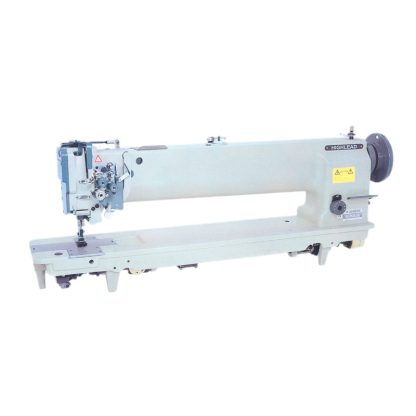

| Highlead GC20638-25 | |||||||
| Model | GC20638-25 | GC20638-25D | |||||
| Max Sewing Speed | 1800 rpm | ||||||
| Needle bar stroke | 33.4 mm | ||||||
| Stitch length | 0-9 mm | ||||||
| Presser foot lift | By hand | 7 mm | |||||
| By knee | 13 mm | ||||||
| Needle Size | DB x 17 23# | ||||||
| Needle gauge | 8mm (Standard) 6.4mm 9.5mm (Special) | ||||||
| Rotating Hook | Large hook trimmer | ||||||
| Lubrication | Manually lubricated | ||||||
| Motor | 370W Clutch motor 1400 r.p.m. | Speed adj. motor | |||||
| Working Space | 635mm x 100mm | ||||||
