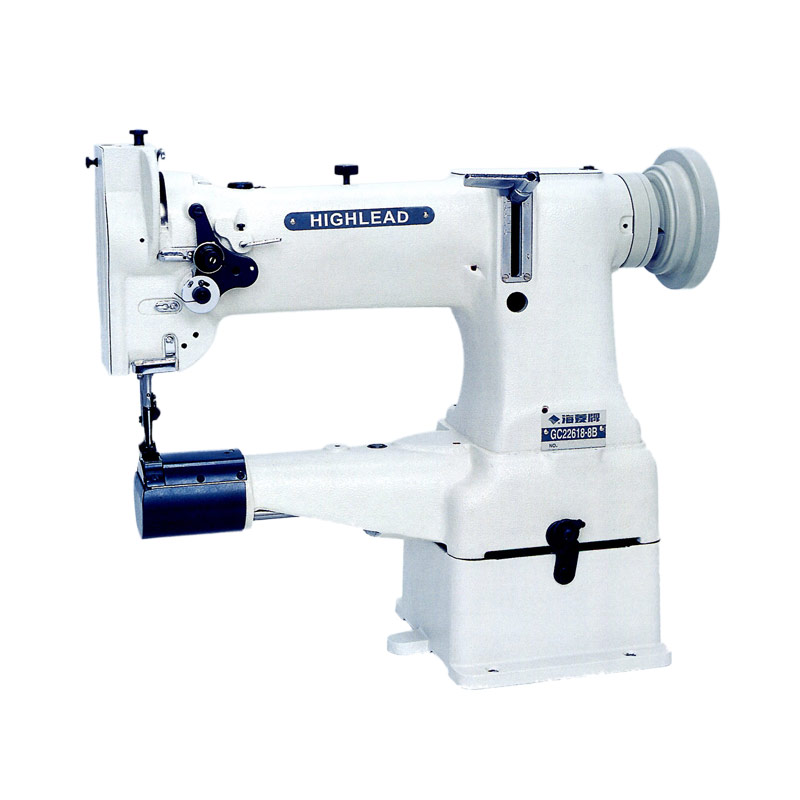

This standard size vertical hook walking foot (triple transport) cylinder bed machine is a new model with industry accepted features and styling. It features a sliding lever thread take up, a lever type stitch regulator and inside belt to drive the top shaft and hook shaft at ample speed. It has a high presser foot lift thereby making it a capable piece of equipment in the construction of suitcases, soft sided luggage, seat cushions and binding operations on luggage, tote bags and other similar articles.
| Highlead GC22618-8B | ||
| Max Sewing Speed | 2200 rpm | |
| Stitch length | 0-5 mm | |
| Needle bar stroke |
33.2 mm
|
|
| Thread take-up lever stroke | 61.5 mm | |
| Presser foot lift | By hand | 8mm |
| by knee | 14mm | |
| Presser foot | Alternating walking presser foot | |
| Feed dog | Single row | |
| Needle Size | DP x 17 18#-22# | |
| Bed size in diameter | 62mm | |
| Rotating Hook | Vertical hook | |
| Lubrication | Manual | |
| Motor | 370W Clutch motor 1400 r.p.m. | |
